Completed Jobs: Tucson, AZ

Teen Challenge Thrift Store

Tucson, AZ

Job Description:

Problem: They needed assistance with air distribution in accordance with the construction plans and specifications.

Solution: Existing Diffuser Relocation

  • Remove existing ceiling supply diffusers from the existing flexible duct connections.
  • Extend and relocate existing supply ductwork to accommodate the new reflected ceiling layout.
  • Utilize new 12-inch R-8 insulated flexible duct where required to reach the new diffuser locations.
  • Reconnect all relocated diffusers after installation of the new suspended ceiling grid and ceiling tiles.
  • Support all ductwork with approved hangers and supports in accordance with applicable mechanical code and manufacturer installation requirements.
  • Seal all duct connections using approved duct sealant.
  • Verify proper airflow after installation and perform minor balancing adjustments where accessible.

New Office Supply Air

  • Furnish and install one (1) new 12-inch R-8 insulated supply duct serving the new office.
  • Install one (1) new 24” x 24” lay-in supply diffuser.
  • Provide and install one (1) manual balancing damper within the new supply branch for airflow adjustment.

Return Air

  • Furnish and install one (1) new 12” x 24” return air transfer grille complete with opposed blade damper (OBD).

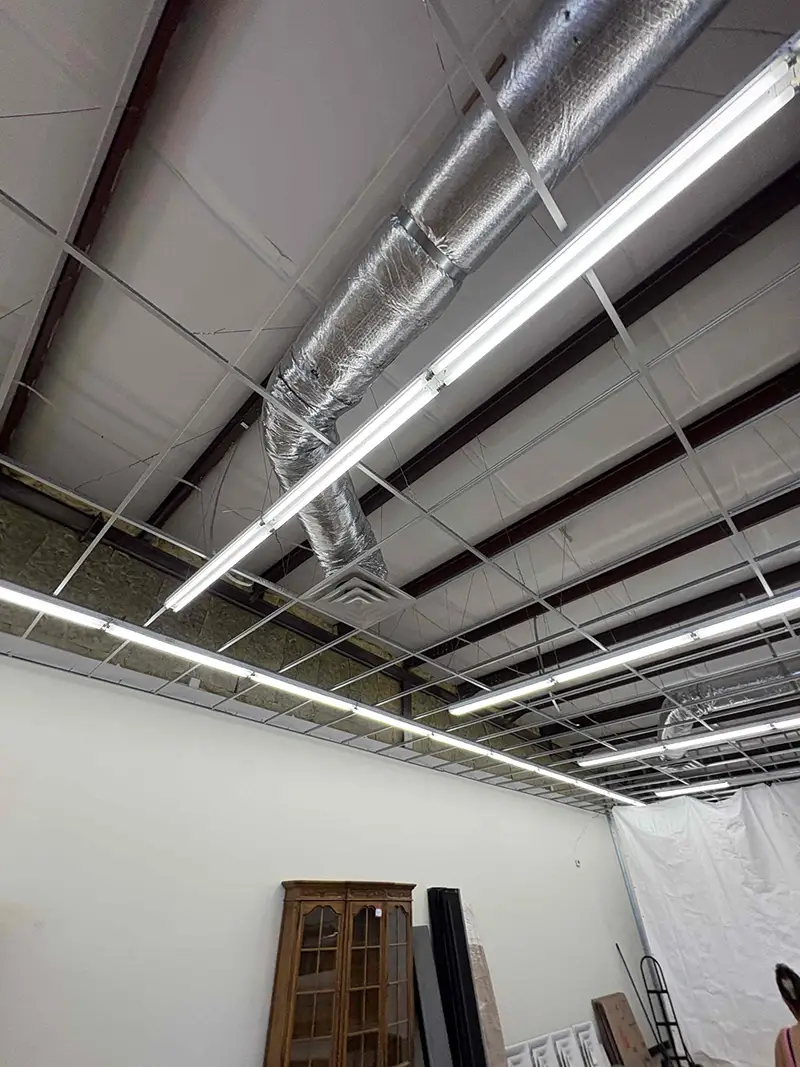

existing diffuser relocation zona

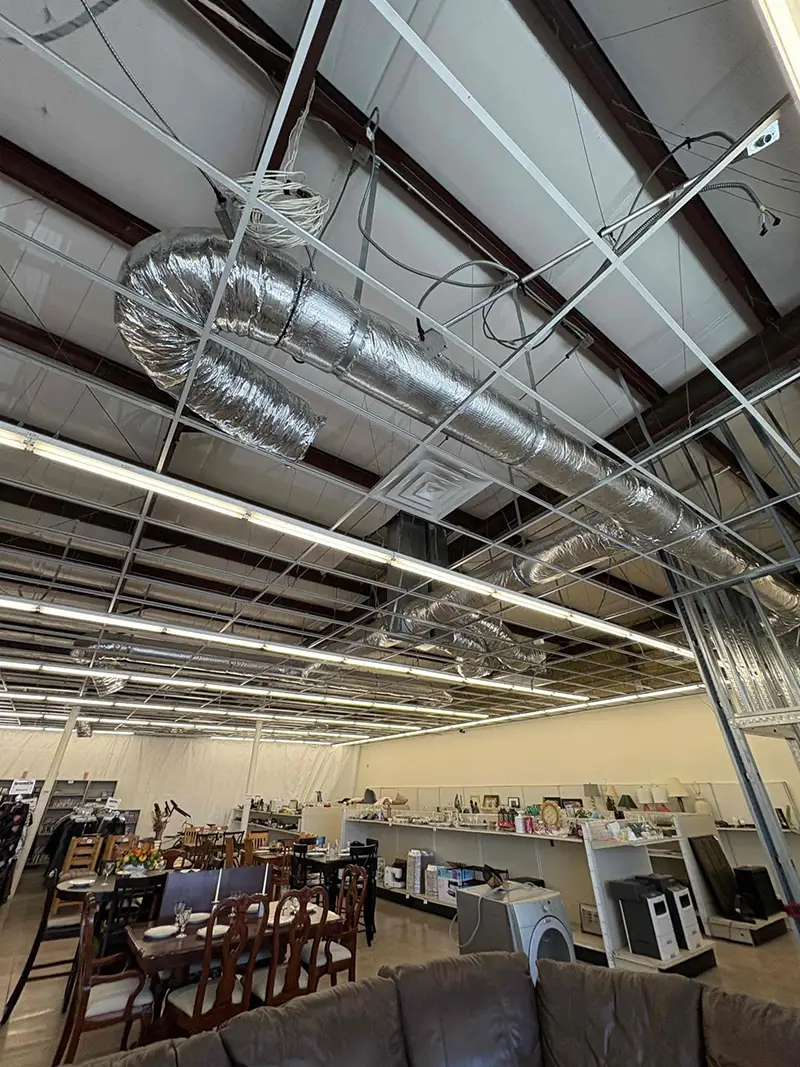

existing diffuser relocation zona

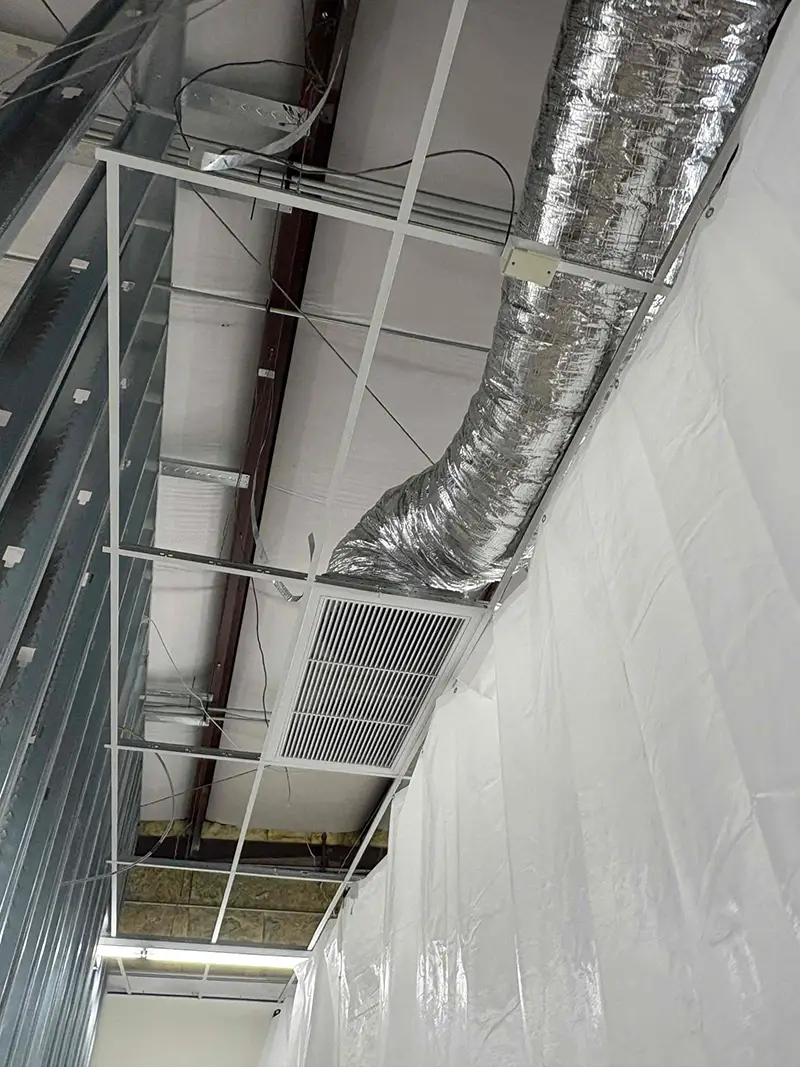

existing diffuser relocation zona

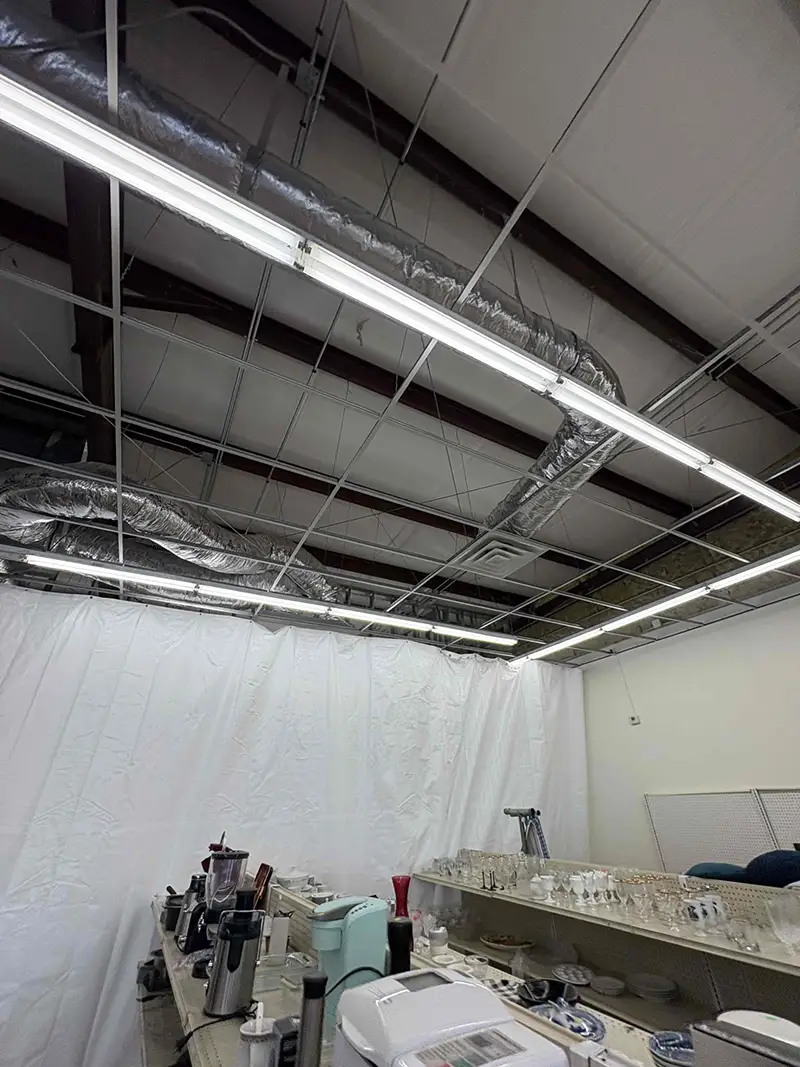

existing diffuser relocation zona
